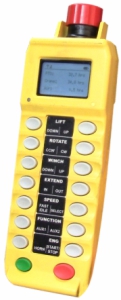

WIRELESS REMOTES |
Innovations in Engineering
have resulted in many upgrades to the Maintainer crane line recently. Maintainer truck-mounted cranes are a smart investment for your next service truck. Check out the models available below and discover why Maintainer is one of the leading truck crane manufacturers.
OSHA 1910.180/ANSI B30.5 compliant
CLICK ON THE MODEL NUMBERS BELOW TO GET MORE INFORMATION...
Can't find the crane you are looking for?
You can find discontinued models at our Legacy Cranes page.
|
Model |
Type* | Crane Rating (ft*lb) | Crane Reach | Max Lift (lbs.) | Boom Elevation |
|---|---|---|---|---|---|
| EH3516 | Elec/Hyd - ST | 15,000 | 16' | 3,500 | -13° + 78° |
| EH4520 | Elec/Hyd - ST | 20,000 | 20' | 4,500 | -13° + 78° |
| EH5520 | Elec/Hyd - ST | 30,000 | 20' | 5,500 | -13° + 78° |
| H3516 | Hyd-ST | 15,000 | 16' | 3,500 | -13° + 78° |
| H4520 | Hyd - ST | 20,000 | 20' | 4,500 | -13° + 78° |
| H5520 | Hyd - ST | 30,000 | 20' | 5,500 | -13° + 78° |
| H6520 | Hyd - ST | 38,000 | 20’ | 6,500 | -13° +78° |
| H7024 | Hyd - ST | 45,100 | 24’ | 7,000 | -13° +78° |
| H8524 | Hyd - ST | 52,500 | 24' 6" | 8,500 | -13° +78° |
| H8530 | Hyd - ST | 52,500 | 30' | 8,500 | -13° +78° |
| H10025 | Hyd - ST | 75,000 | 25’ | 10,000 | -13° +78° |
| H10030 | Hyd - ST | 60,000 | 30' | 10,000 | -13° +78° |
| H10034 | Hyd - ST/TT | 75,000 | 34’ | 10,000 | -13° +78° |
| H12025 | Hyd - TT | 90,000 | 25' | 12,000 | -13° +78 |
| H14025 | Hyd - TT | 90,000 | 25' | 14,000 | -13° +78 |
*ST=Short Tower TT=Tall Tower
Bolt-on EH Outrigger Packages
These outriggers are designed to support customers who are adding Maintainer's smaller electric-hydraulic (EH) and hydraulic cranes to their service trucks. They can be used with all of our EH/Hydraulic cranes: EH/H3516, EH/H4520, and EH/H5520. They are easily configured for curb-side or street-side cranes.
Three Models To Choose From:
-
Manual Crank Up/Down-Manual Out
(model #024102) -
Hydraulic Up/Down - Manual Out
(model #024105) -
Hydraulic Up/Down - Hydraulic Out
(model #025112)
Bolt to chassis using supplied channels, or weld to flatbed/service body.
MORE Maintainer Crane Advantages...
- Crane and outrigger valves are enclosed and protected under body
Advanced Crane Control is standard on H6520 and larger cranes -
and available as on option on all others- Hydraulic hoses are encased and protected
- True independently proportional crane controller on hydraulic cranes
- 615° of crane rotation on some models
- Stainless steel fasteners, sheave pins, and extend cylinder pins
- Initial crane inspection performed at the factory for turnkey performance - Your crane is ready for work when delivered!
- Load charts, boom angle indicators, and boom length indicators are on both sides of the crane for maximum visibility
- Quick release load block storage hook
- Easy double to single part line conversion
- No flip sheave
- Main wear pads easily serviceable from outside
- Our -13° elevation on hydraulic cranes allows for easier access to stow the load block
SAFETY FEATURES:
- Load sensing, pressure compensated, true proportional, section crane valve
- Redundant hydraulic overload protection (even when using manual handles)
- Counterbalance valve machined into base of lift and extend cylinders for maximum protection
- Warning horn, e-stop, air compressor, speed control and start/stop all on crane transmitter as standard
- Self latching safety hook on load block
- Safety decals and coloring per NCCCO recommendations & ANSI z535.4 requirements

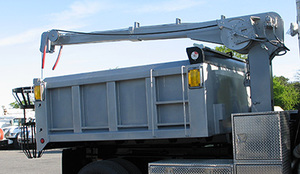

Catch Basin Crane
Specialty crane available for municipalities with specific catch basin cleaning needs
